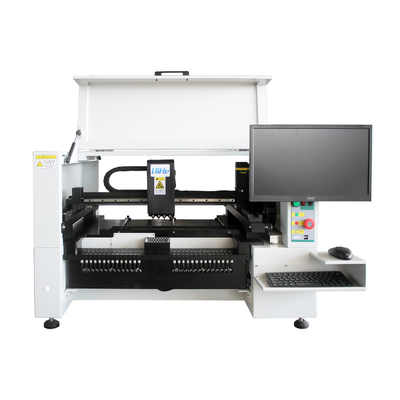

360*310mm High Speed ​​Desktop PCB Board Making LED Light Production SMT Pick and Place Machine TVM925

1 Set
MOQ
360*310mm High Speed ​​Desktop PCB Board Making LED Light Production SMT Pick and Place Machine TVM925
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Weight (KG): 170
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: TVM925
Model Number: TVM925
Warranty: 1 Year
Name: Place Machine\LED Mounter\led Assembly Machine
Max applicable PCB: 360*310mm
Max XY Moving range: 375*620mm
Max Z Moving range: 16mm
Max mounting capability: 9000 CPH without vision / 7000 CPH with vision
Applicable Components: 0402,0603,0805,SOP8,SOP16......QFN
Tape width: 8mm,12mm,16mm,24mm
Feeders: 38 (YAMAHA Feeder is available)
Net Weight: 130kg
After Warranty Service: Online support
Informazioni di base
Model Number: TVM925
Termini di pagamento e spedizione
Packaging Details: Standard export package: EPE inside and composite material box outside to ensure no risk at all in transit.
Supply Ability: 100 Set/Sets per Year
Descrizione di prodotto

High Speed Desktop PCB Board Making LED Light Production Pick And Place Machine SMT TVM925

Recommended Products

P & P MACHINE

HOT SALE

PLS CLICK PICTURE DIRECTLY FOR DETAIL!!!
TVM925 Details



Model TVM925
Max applicable PCB size 20*20mm-310*360mm
XY axis moving range 375*620mm
Z axis moving range 16mm
Placement head quantity 4
Mounting speed Vision off:9000CPH
Vision on:7000CPH
Applicable components Smallest size:0402
Biggest size:16*16mm
Maximum height:5mm
Motor control scheme Closed-loop stepper motor
Feeder 38 (YAMAHA feeder is available)
Visual camera 1 pcb inspcetion camera, 1 flying camera
Power supply 220V or 110V
Average working power 350W
Machine dimension 845*865*650mm
Net weight 130kg
Gross weight 175kg
Packing size 1000*990*850mm
Volume 0.84CBM
Warranty 1 year





Main Features

1. Vision system: one pcb inspection camera and one flying camera.

2. Four placement heads can pick up components at one time.

3.  38 feeder slots, Yamaha standard feeder is available.

4. Built-in computer mainboard, the monitor, key board and mouse will ship with machine.

5. Video tutorials make you operate machine easily

6. Free to upgrade software and provide technology support for life.







Production Line Recommend



Company Information

Company Show







Exhibition Show





Certificate



FAQ

1. Q: How many nozzles do you supply?

A: The TVM802 has two nozzle-heads, we supply 4 nozzles. The TVM925 has 4 nozzle-heads, we supply 6 nozzles. The QM61 has 6 nozzle-heads, we supply 8 nozzles.

2. Q: Which language is the software? Do you provide software updates?

A: English or Chinese. Free to upgrade software for lifetime.

3. Q: This is the first time I use this kind of machine, is it easy to operate?

A: Yes. There are English manual and guide video that show you how to use machine.

If there is any doubt in the process of operating the machine, please feel free contact us.

We also provide overseas on-site service.

4. Q: Can we customize the machine?
A: Of course. All of our machines can be customized.

5. How about the warranty?

A: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
